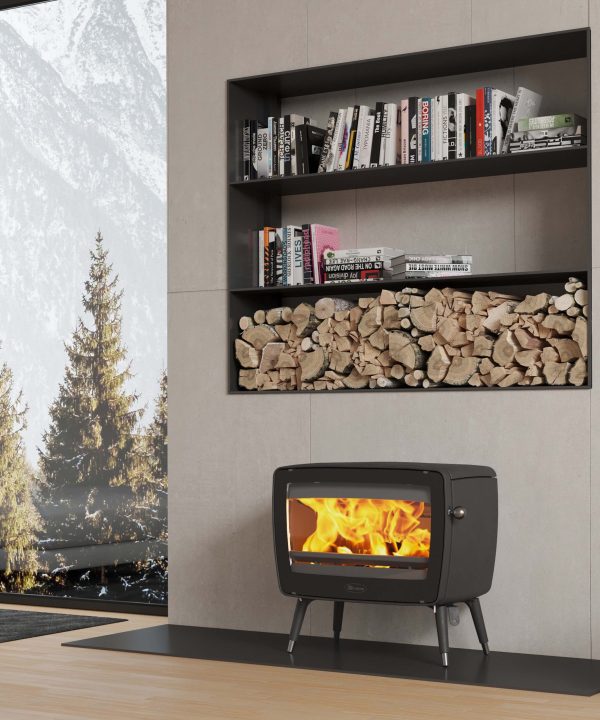

Dovre VINTAGE50 Wood Stove

TYPE: Stove

STYLE: Modern

WEIGHT (KG): 155

FUEL: Wood

CONNECTION PLACE: on top or rear

NOMINAL OUTPUT (KW): 9

MINIMAL OUTPUT (KW): 3

MAXIMUM PERFORMANCE (KW): kW11

CAPACITY (M³): 180

EFFICIENCY: 84,20%

CO EMISSIONS (13% O2): 0,1

DUST PARTICLES (MG/NM³): 27

COMBUSTION FLOOR: Refractory bottom with ash hatch

MINIMUM PRESSION: 12

FLUE GAS VOLUME (G/S): 6,4

LENGTH OF LOGS (CM): 50

SECOND COMBUSTION: Yes

ASH TRAY: Inclusive

HEAT SHIELD: Inclusive

OUTSIDE AIR: Inclusive

TEMPERATURE INCREASE MEASURED IN THE MEASUREMENT SECTION (K): 207

NOX EMISSIONS (13%O2 AT NOMINAL HEAT OUTPUT - MG/NM³): 112

SEASONAL SPACE HEATING ENERGY EFFICIENCY (%): 74,2

DIRECT HEAT OUTPUT (KW): 9

INDIRECT HEAT OUTPUT (KW): 0

TYPE OF HEAT OUTPUT/ROOM TEMPERATURE CONTROL: single stage heat output, no room temperature control

DIMENSIONS WXHXD (MM): 690x690x445

CONNECTION DIAMETER (MM): 150

HEIGHT FLUE (MM): 545

A Side of heater to side wall: 450
B Centre of heater flue to rear wall: 355
C Rear of heater to rear wall: 150
D Front of heater to hearth front: 550
E Minimum hearth width: 995
F Minimum hearth depth: 995
G Rear corner of heater to wall: 200
H Minimum corner hearth depth: 1465
