Dovre

760WD

760WD

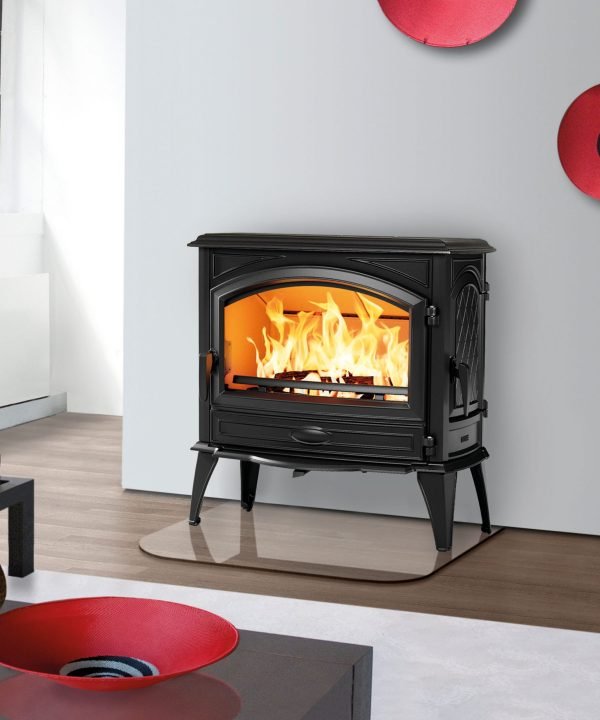

The ‘760’ model is the biggest size version of Dovre’s ‘Classic’ bestseller. The stove comes with a single air control and has a direct outside air connection and a side loading door.

Standard Features

CONNECTION DIAMETER (MM) 150

HEIGHT FLUE (MM) 645

CONNECTION PLACE on top or rear

NOMINAL OUTPUT (KW) 12

MINIMAL OUTPUT (KW) 4

MAXIMUM PERFORMANCE (KW) kW14

CAPACITY (M³) 240

EFFICIENCY

80,00%

CO EMISSIONS (13% O2)

0,06

DUST PARTICLES (MG/NM³)

39,5

COMBUSTION FLOOR

Refractory bottom with ash hatch

MINIMUM PRESSION

12

FLUE GAS VOLUME (G/S)

10,4

LENGTH OF LOGS (CM)

55

SECOND COMBUSTION

Yes

ASH TRAY

Inclusive

HEAT SHIELD

Optional

OUTSIDE AIR

Inclusive

AVAILABLE IN COUNTRIES

Australia

TEMPERATURE INCREASE MEASURED IN THE MEASUREMENT SECTION (K)

270

NOX EMISSIONS (13%O2 AT NOMINAL HEAT OUTPUT - MG/NM³)

46

SEASONAL SPACE HEATING ENERGY EFFICIENCY (%)

70

DIRECT HEAT OUTPUT (KW)

12

INDIRECT HEAT OUTPUT (KW)

0

TYPE OF HEAT OUTPUT/ROOM TEMPERATURE CONTROL

single stage heat output, no room temperature control

Manual

Dimensions

700x800x565
