Quadra-Fire

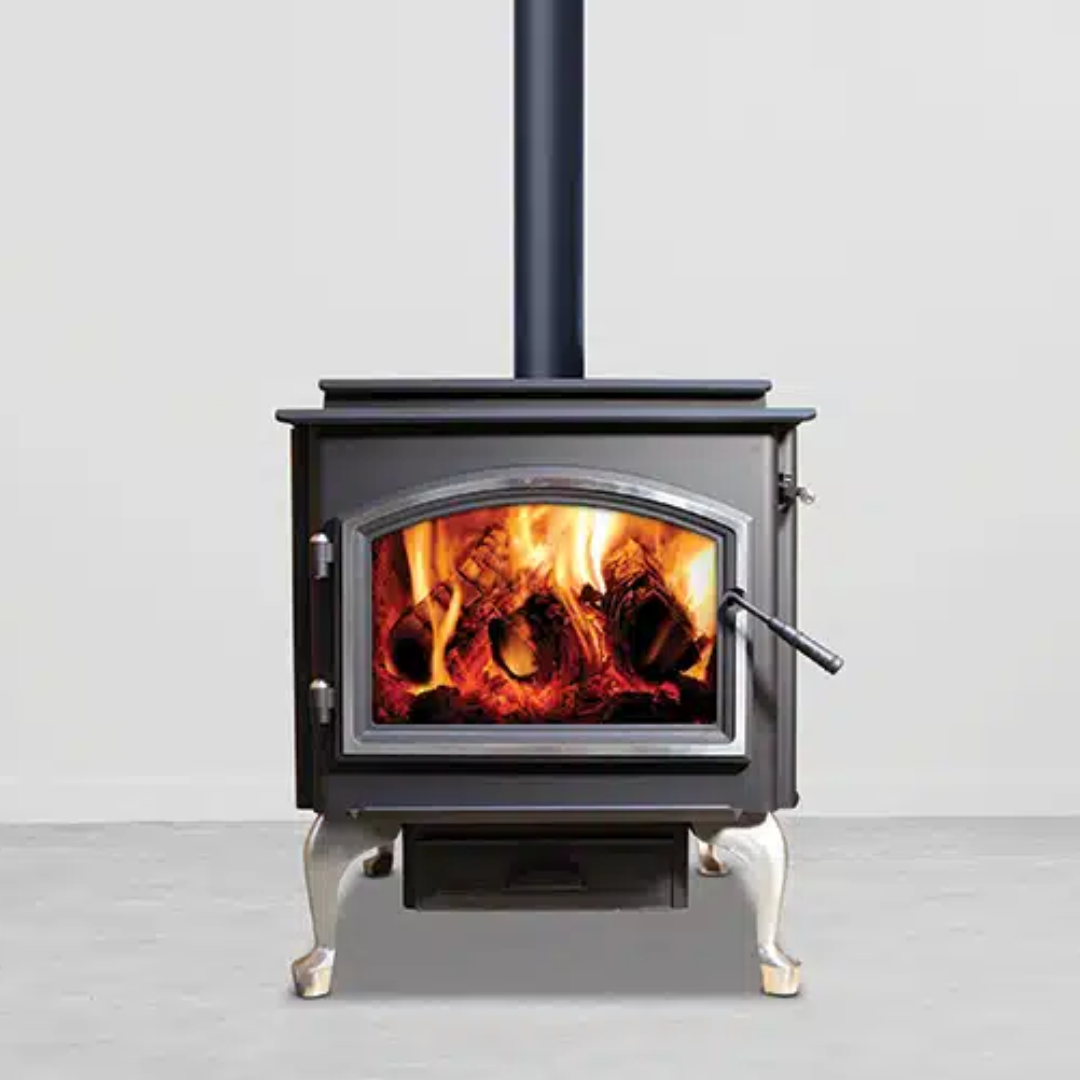

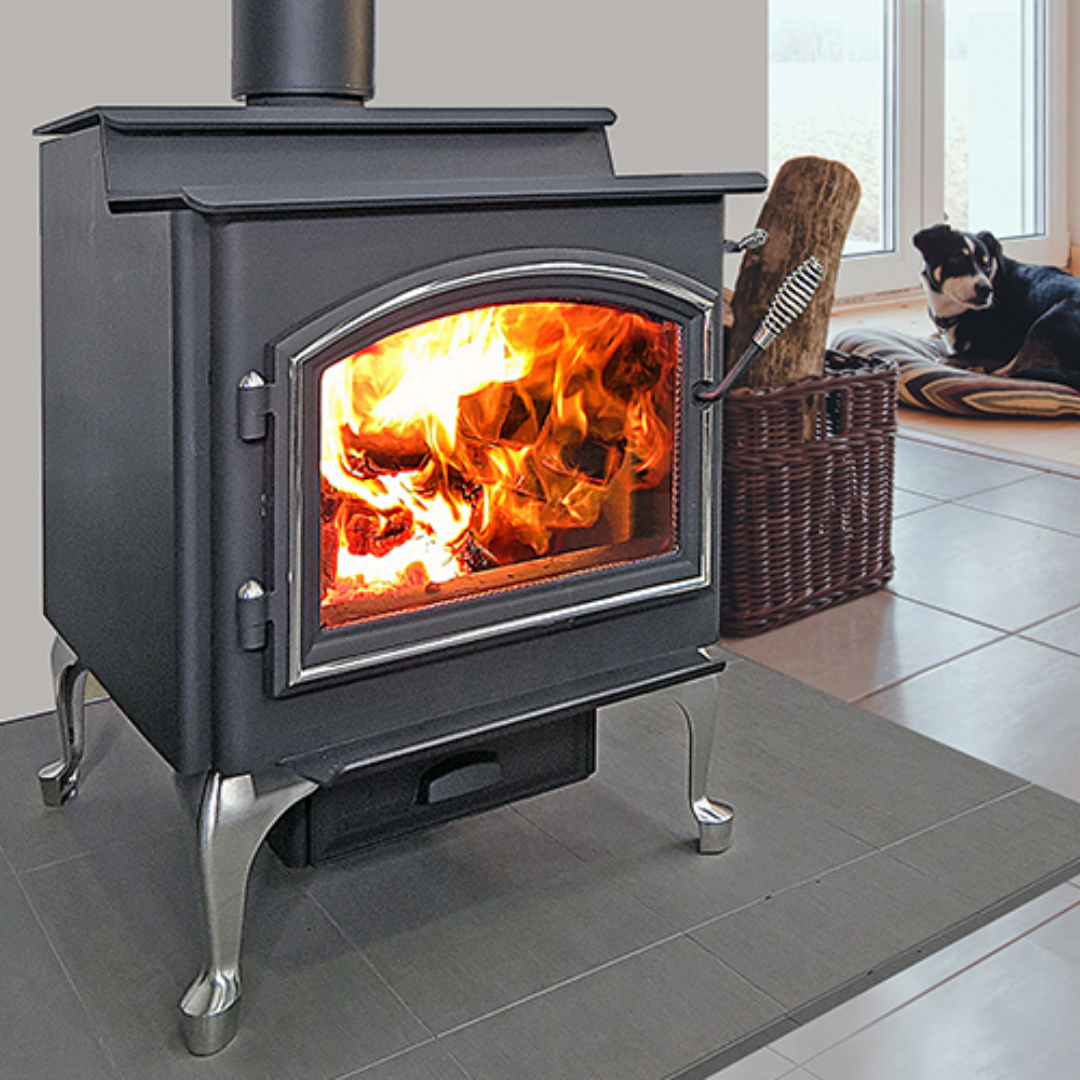

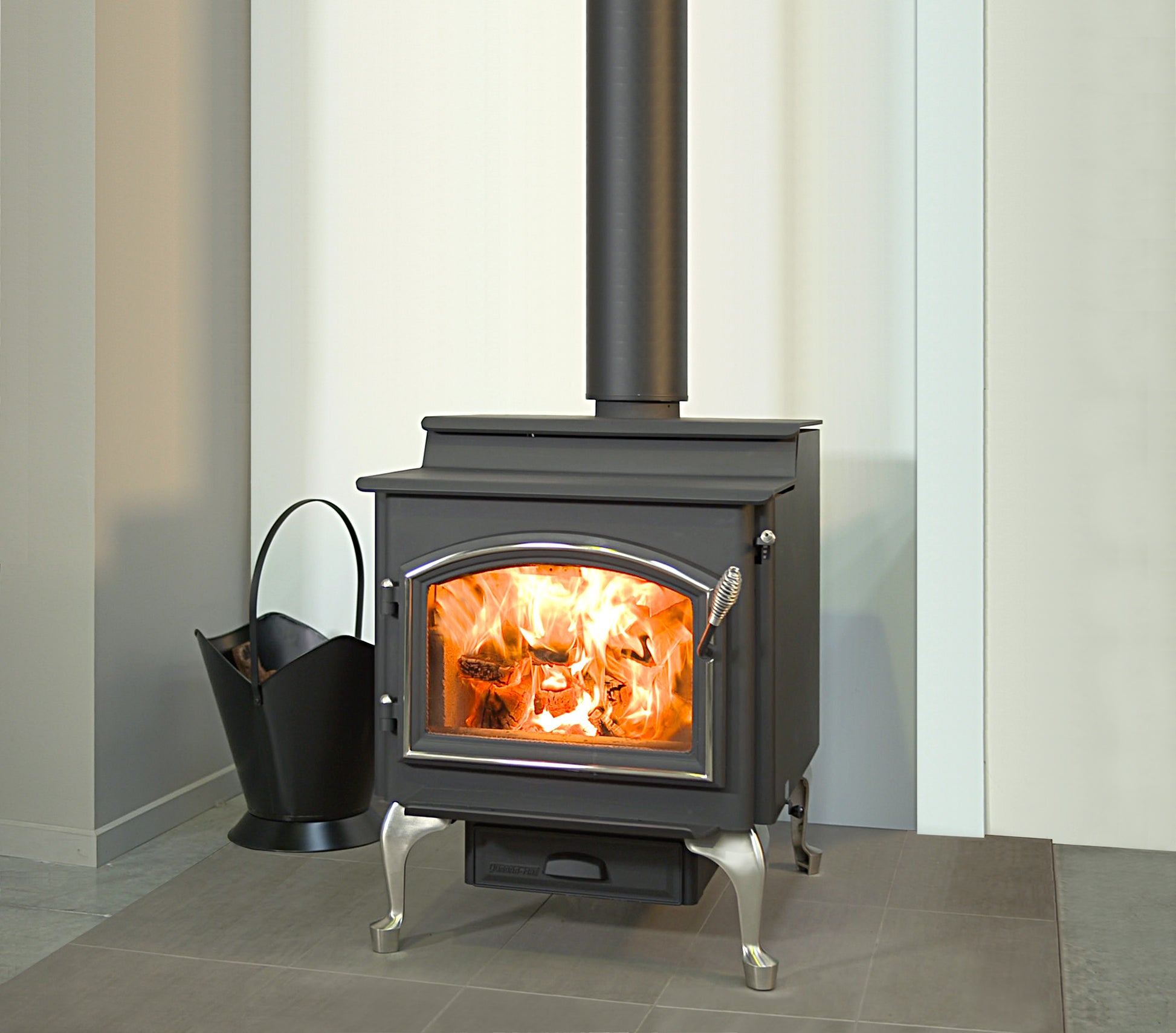

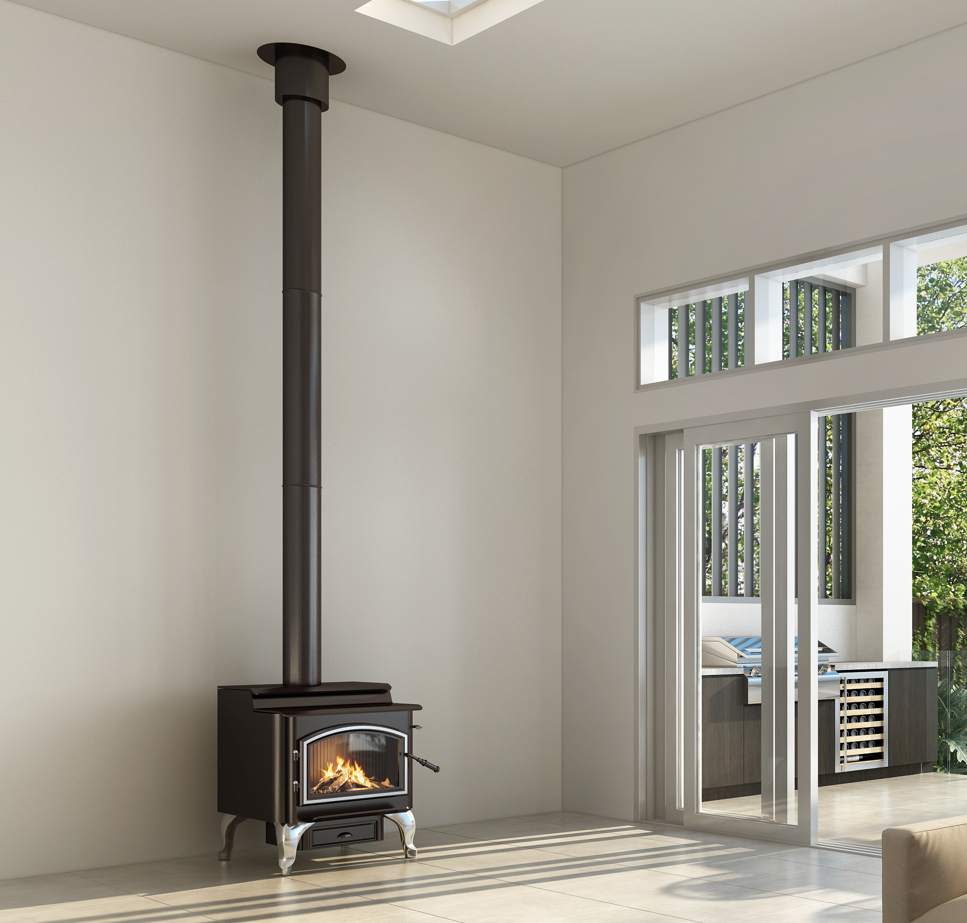

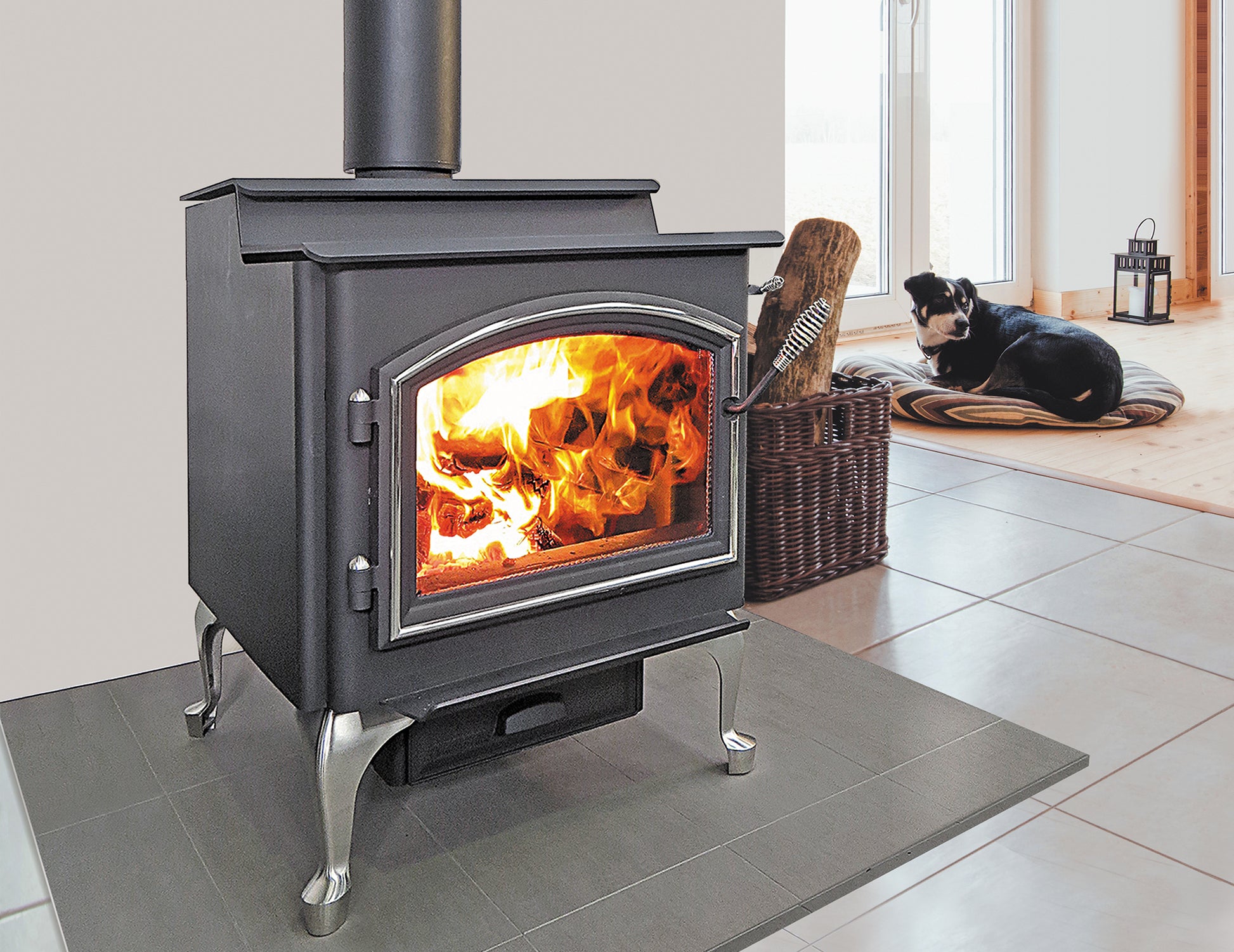

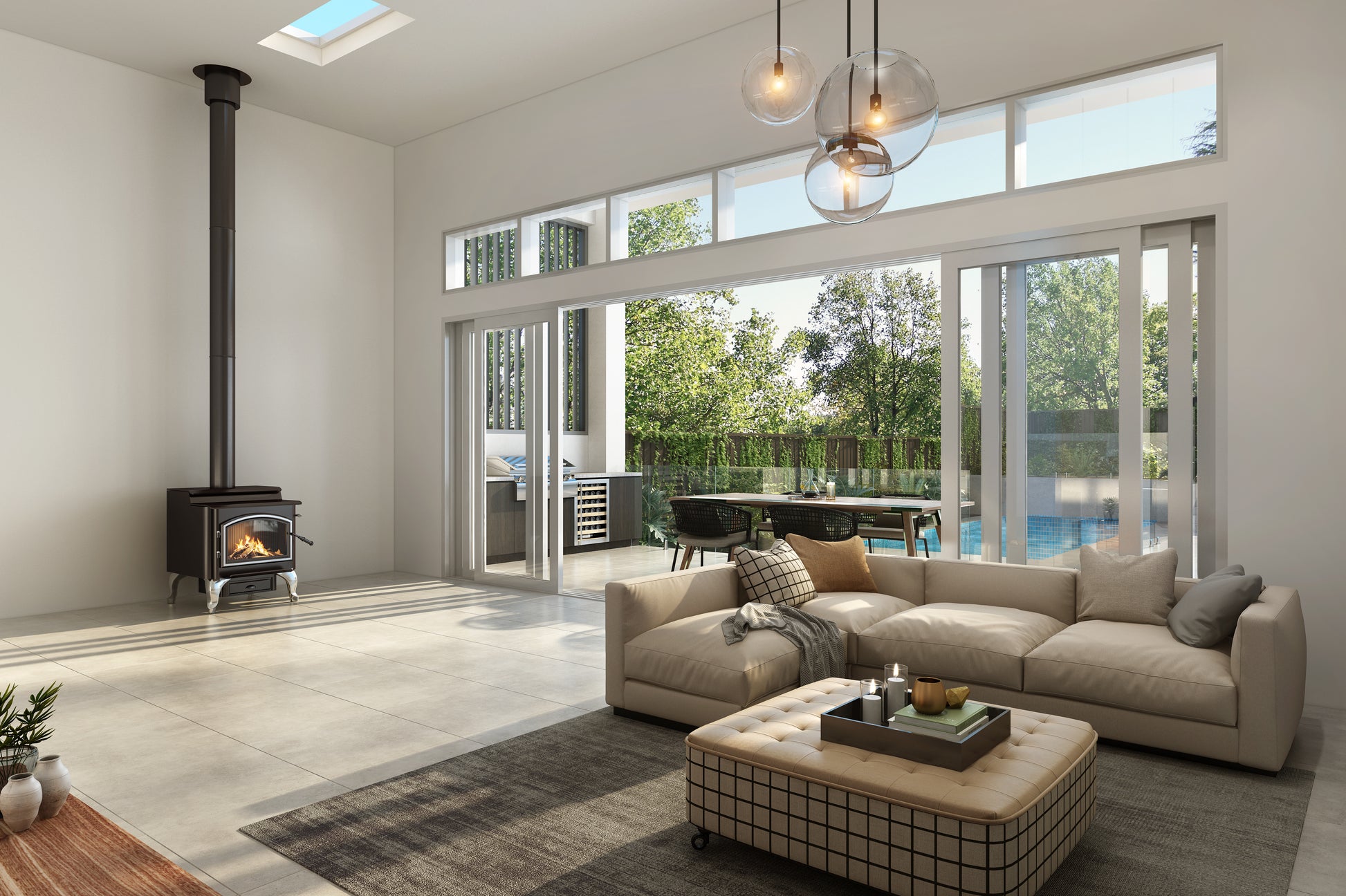

5700 STEP TOP FIREPLACE

5700 STEP TOP FIREPLACE

The largest freestanding wood stove in the range, the 5700 Step Top delivers high efficiency and low emissions PLUS a maximum burn time of 21 hours. The durable steel construction, ash removal system and patented four-point combustion technology ensures that the 5700 Step Top will deliver exceptional heat output for years and years.

5700 Step Top must be purchased with a pedestal kit or legs: (Leg kits can be substituted for 5700 Pedestal kit) - Click on leg kit products below to view in a new page :

Queen Anne Nickel Legs

Queen Anne Black Legs

5700 Pedestal Kit


Standard Features

  • Long burn time of up to 21 hours
  • Heating capacity of up to 37sq
  • Average efficiency of 65%
  • Low particulate emissions of 1.5gms/kg
  • Heavy-duty steel construction
  • Ash recovery system with ash pan
  • Convection heat shields
  • Automatic Combustion Control (ACC) technology
  • Four-Point Burn System

Options

  • Pedestal base
  • Queen Anne legs in classic black or satin nickel
  • Satin nickel upgrade kit available (spring handle and hinge pins)
  • 160 CFM variable speed and temperature convection blower
  • Outside air kit

Dimensions

  • Width 662mm
  • Height 861mm
  • Depth 699mm
  • Weight 220kgs
  • Max burn time 14-19hrs
  • Heating Capacity Up to 37sq


CLEARANCES – STRAIGHT BACK AGAINST WALL

  • Back wall to fire 150mm
  • Side wall to fire 300mm


CLEARANCES – CORNER INSTALLATION

  • Wall to fire 100mm
