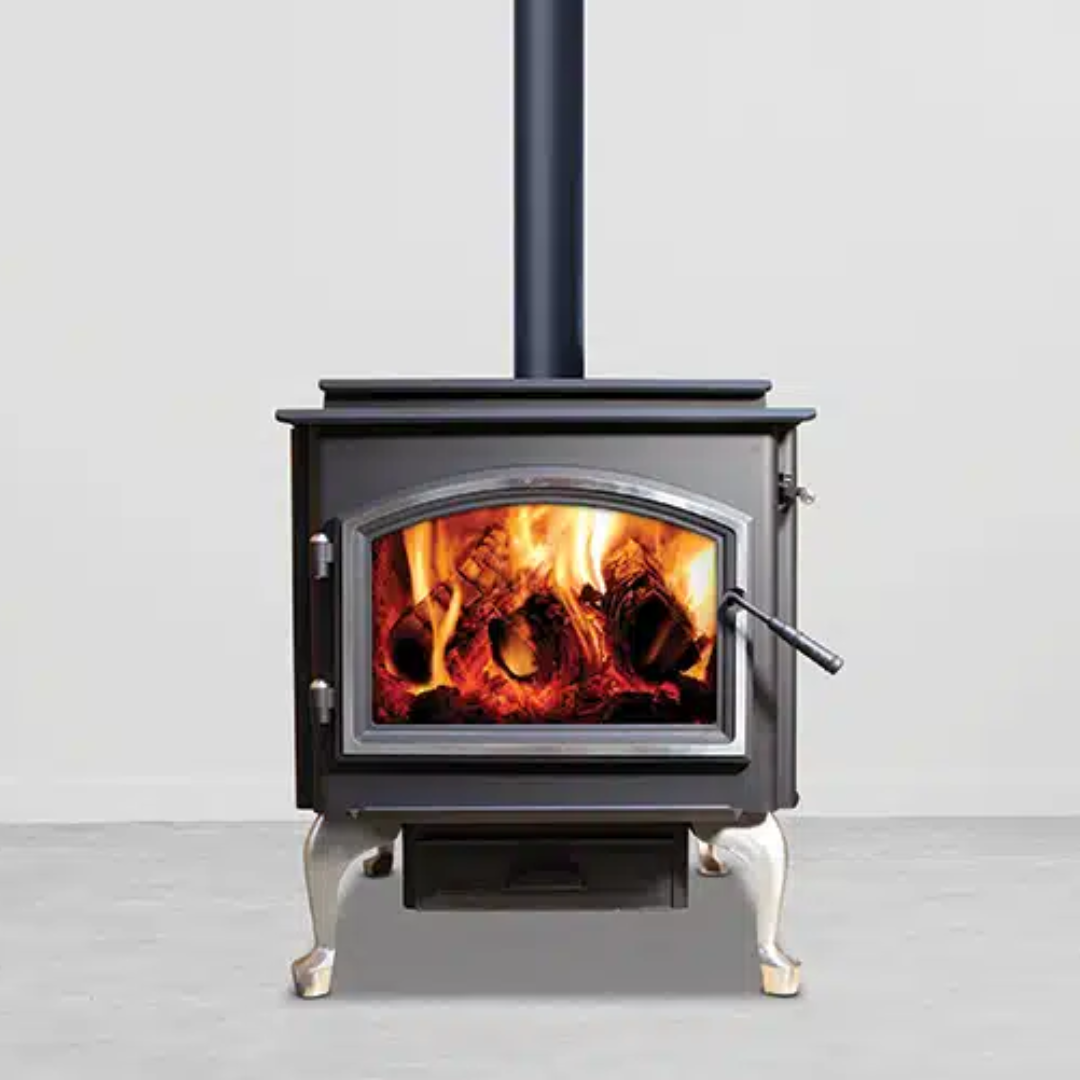

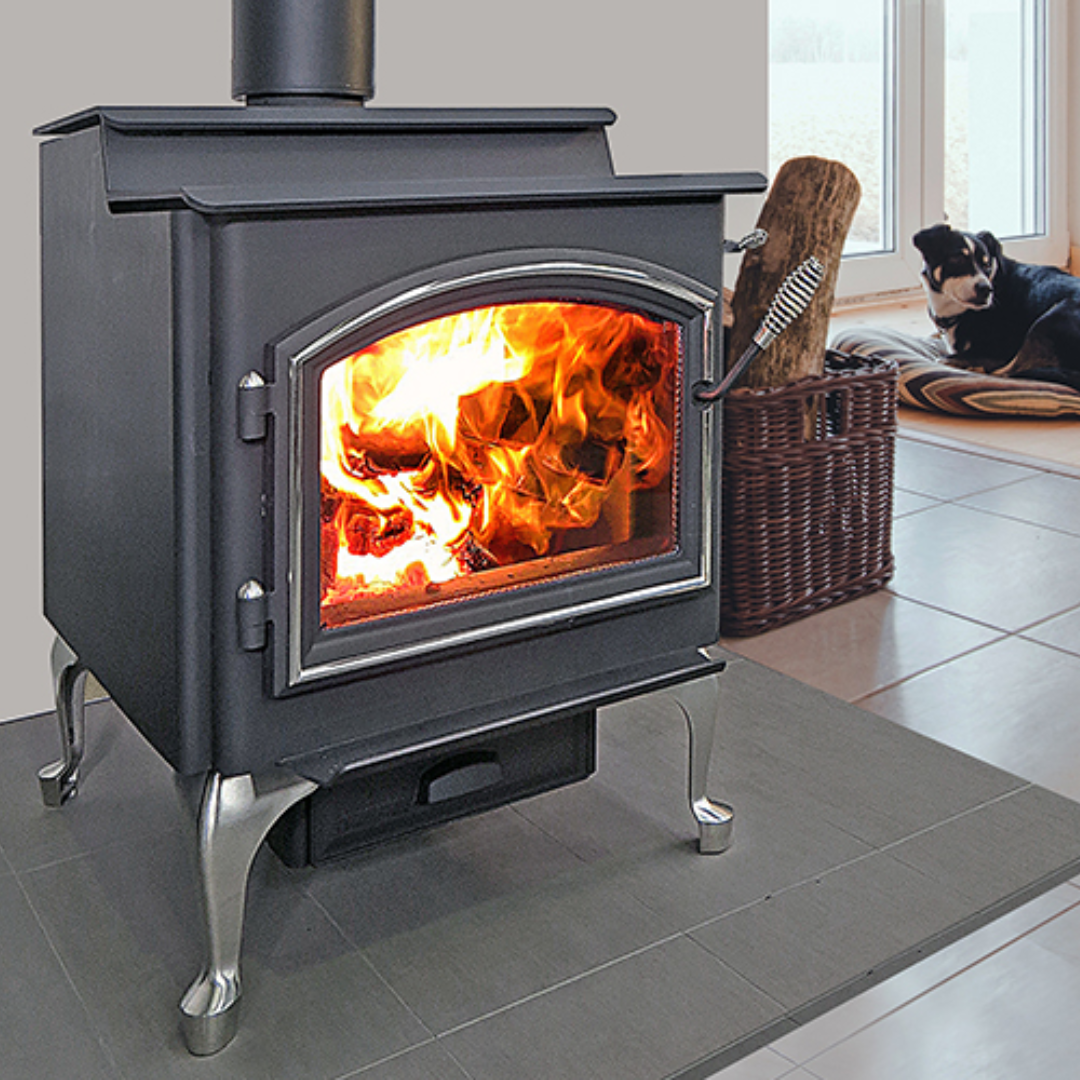

Quadra-Fire 5700 Step Top Wood Stove (Unit Only)

Name: Quadra-Fire 5700 Step Top Wood Stove (Unit Only)
Brand: Quadra-Fire
Price: 5280.00 AUD
Availability: InStock

$5,280.00

Sale Sold out

Taxes included. Shipping calculated at checkout.

Price may not be final. Please see Fees and Installation.

(Unit Only; does not include Legs or Door)
The largest freestanding wood stove in the range, the Quadra-Fire 57 Step Top / 5700 Step Top delivers high efficiency and low emissions PLUS a maximum burn time of 21 hours. The durable steel construction, ash removal system and patented four-point combustion technology ensures that the 5700 Step Top will deliver exceptional heat output for years and years.
The Quadra-Fire Step Top wood stove is designed to deliver powerful performance in an attractive step-top design. Features durable construction, a fully welded, brick lined firebox with thick-plate steel and heavy duty hinges. Quadra-Fire’s exclusive Automatic Combustion Control (ACC) technology delivers precision airflow management for longer, cleaner and more efficient burns, with easy operation.

Standard Features

Long burn time of up to 21 hours
Heating capacity of up to 37sq
Average efficiency of 65%
Low particulate emissions of 1.5gms/kg
Heavy-duty steel construction
Ash recovery system with ash pan
Convection heat shields
Automatic Combustion Control (ACC) technology
Four-Point Burn System

Dimensions

Width 662mm
Height 861mm
Depth 699mm
Weight 220kgs
Max burn time 14-19hrs
Heating Capacity Up to 37sq

CLEARANCES – STRAIGHT BACK AGAINST WALL

Back wall to fire 150mm
Side wall to fire 300mm

CLEARANCES – CORNER INSTALLATION

Wall to fire 100mm

Fees and Installation

Price shown does not include shipping and delivery fees, flueing, installation, or optional accessories where relevant. For a full quote please contact us.
A flat freight fee is added to all cart purchases in order to offset shipping expenses, but may be lower upon quote.
