Visionline

CIRCLE FIREPLACE

CIRCLE FIREPLACE

Simple in design, and contemporary in style, the VisionLINE compact circle wood heater melds seamlessly into any space.

For interiors where size is an issue, the minimalism of its rounded dorm strikes a strong impression, with the Circle perfect for placement in the centre of a room.

Clean lines, cutting edge technology & high quality materials ensure the Circle will warm and burn brightly for decades to come.

Standard Features

KEY FEATURES

  • Winter white hue in burning chamber
  • Elegant integrated door handle
  • Distinctive smokeless surface paint
  • Concealed handle to operate primary and secondary air
  • Full cast iron grate
  • Self closing door system
  • Dual latching door provides solid operation
  • Black glass covered sliding drawer door
  • Ready to connect to outside air via rear inlet or directly to the spigot with VisionLINE AIR pipe
  • Designed as a secondary source of heating
  • Burn Time: Up to 7 hours
  • Average Efficiency: 61%
  • Peak Efficiency: 68%
  • Emissions: 1.0G/KG
  • Heating Capacity: Up to 12 SQ
  • Log Length: Max 300mm

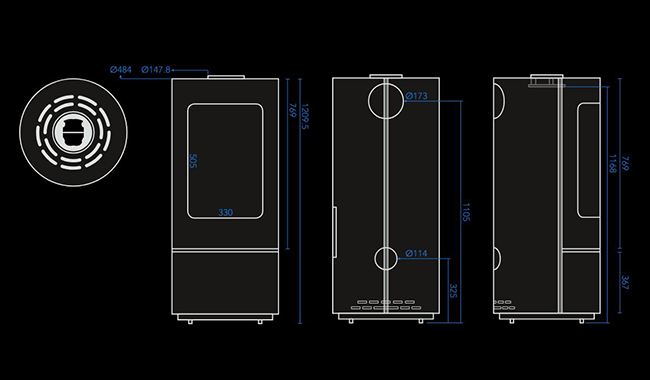

Dimensions

BURN TIME Up to 7h


AVG EFFICIENCY 61%


PEAK EFFICIENCY 68%


EMISSIONS 1.0G/KG


HEATING CAPACITY Up to 12sq


LOG LENGTH Max 300mm

Parallel Positioning SOLID OR
DECRO
MESH
A Min. Clearance from firebox to rear wall 125
B Min. Clearance from firebox to side wall 550
C Min. Distance from firebox opening to
floor protector front
300
D Centre of flue to rear wall 367
E Centre of flue to side wall 792
F Min recommended hearth depth 910
G Min floor protector width 700

Corner Positioning SOLID OR
DECRO
MESH
A Min clearance from firebox to corner wall 175
B Min depth of floor protector 785
C Min distance from firebox to floor protector
front
300
D Centre of flue to wall 590
E Min floor protector width 700
F Corner wall to hearth front 1050
G Corner of hearth to wall 555
